Description
Analog Envelope Filter

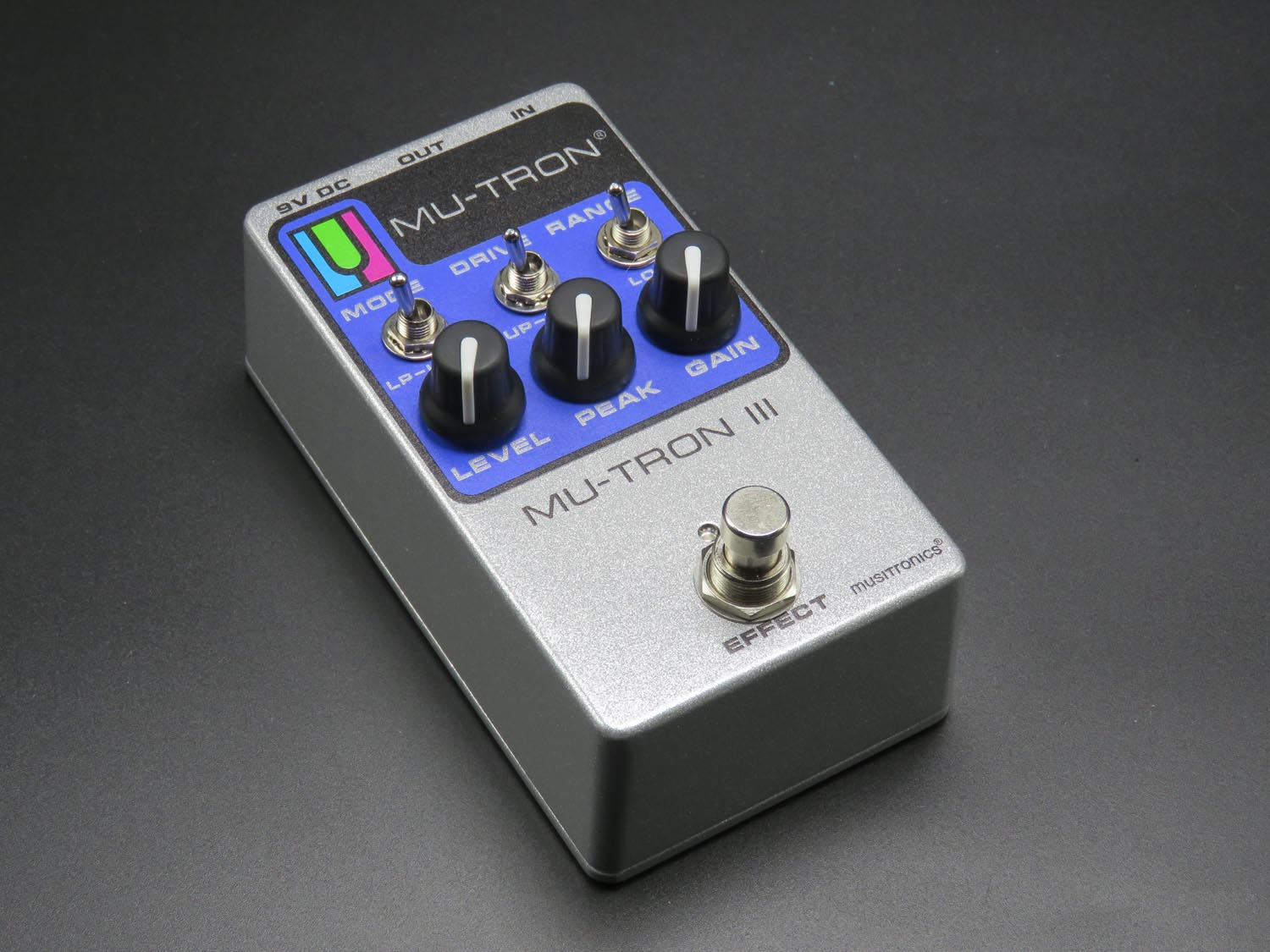

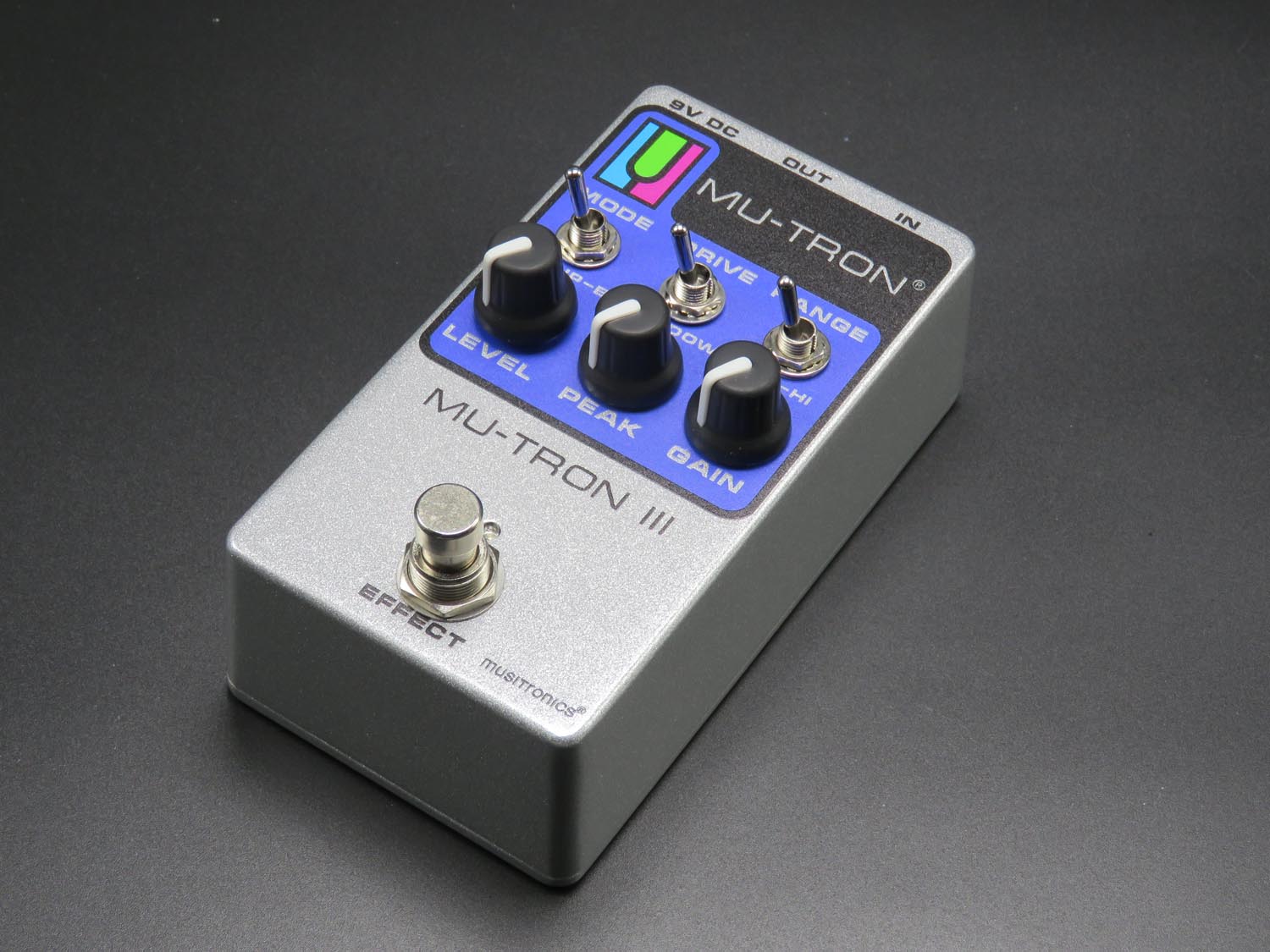

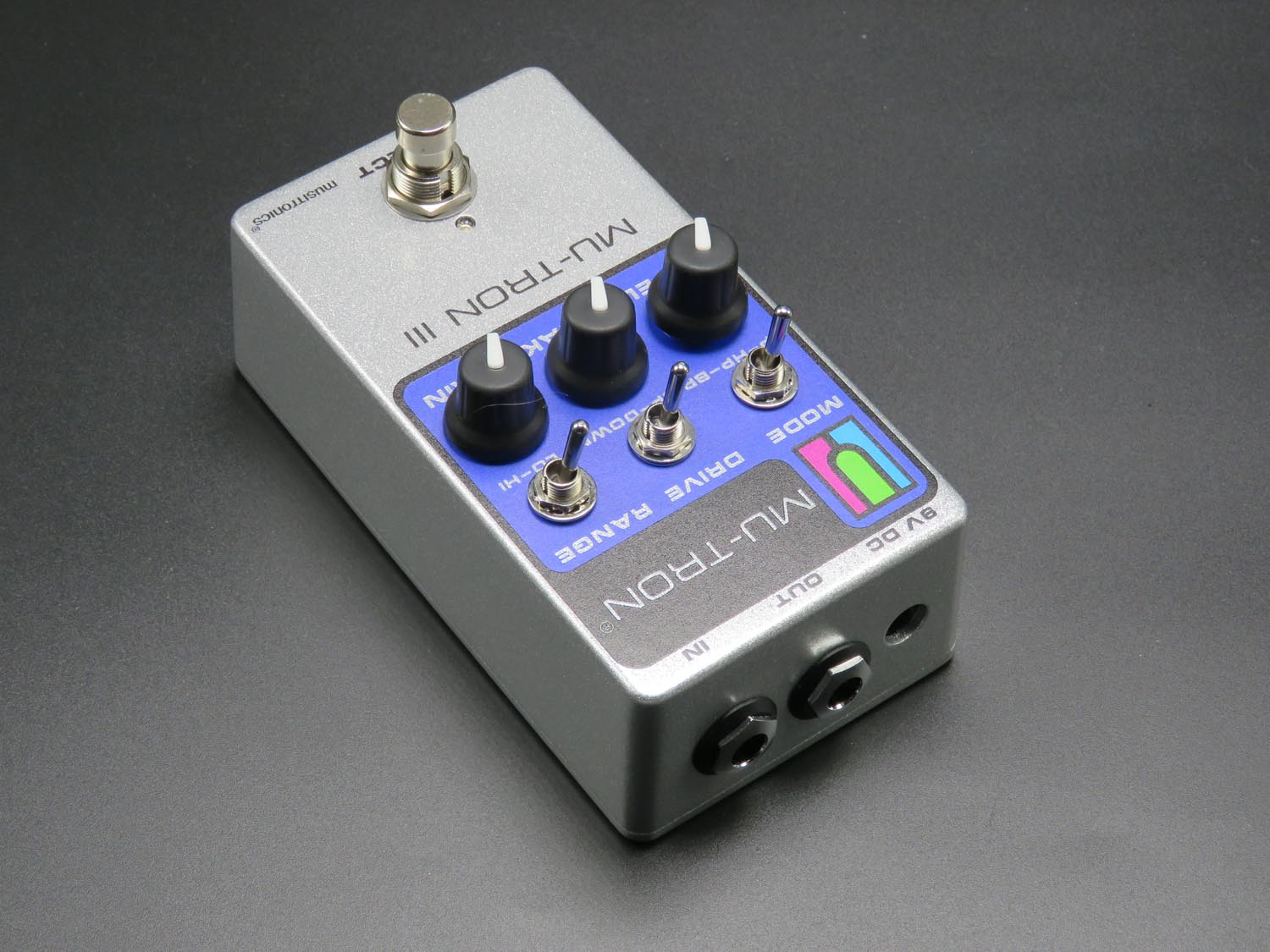

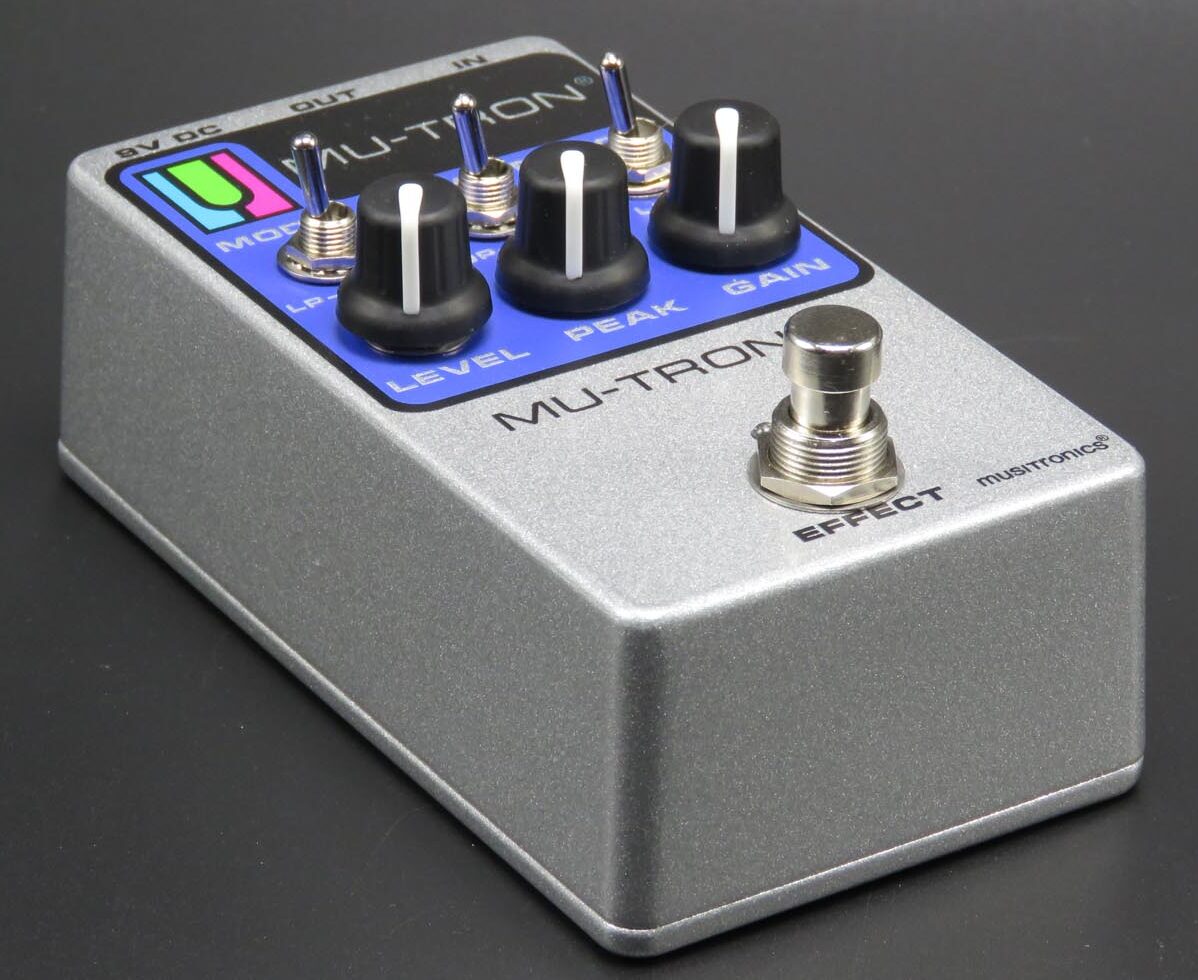

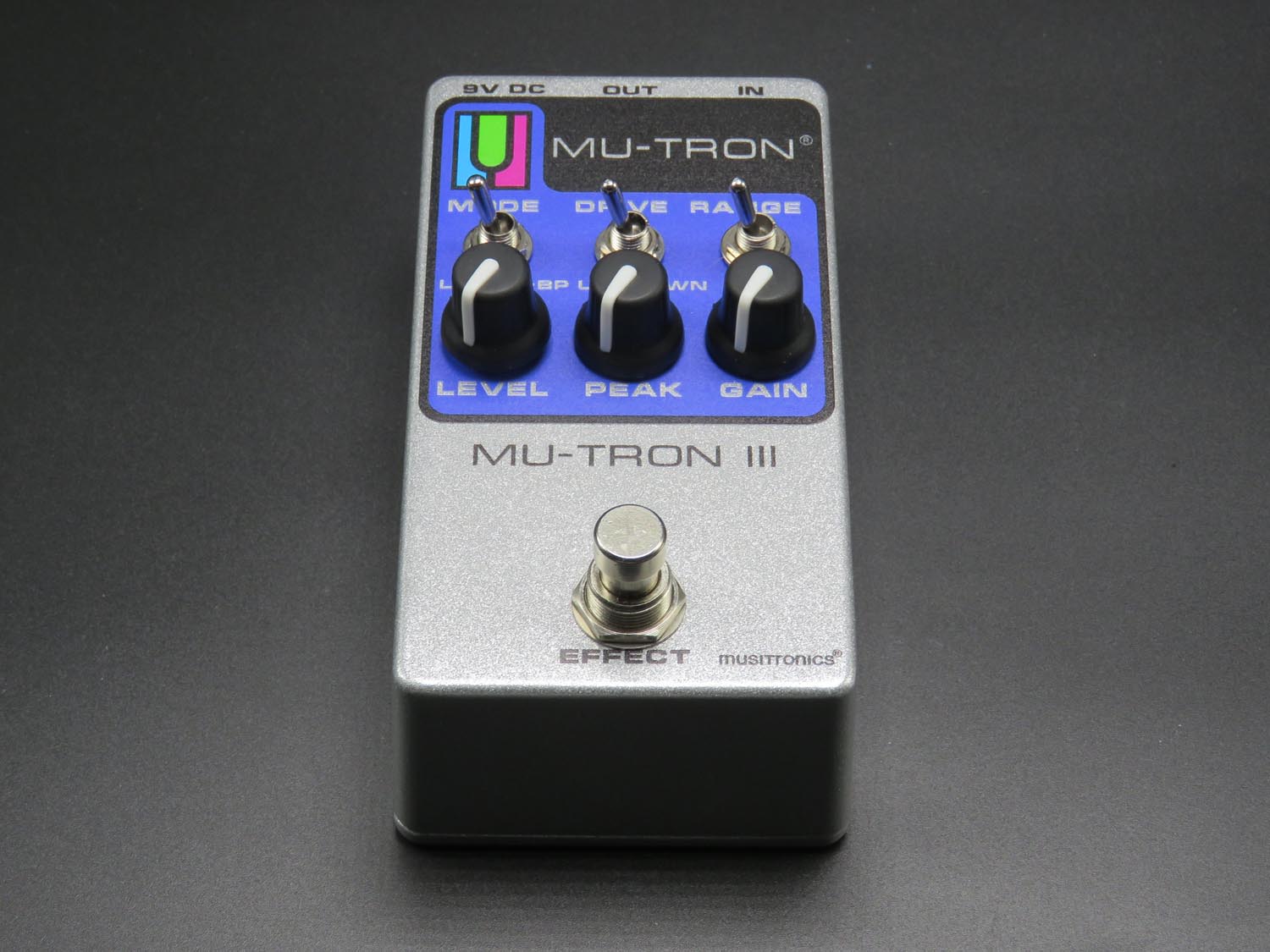

The Mu-Tron MU-TRON III is a modern day reincarnation of the legendary MU-TRON III. With the same circuit and a modern, inernal power supply, this envelope filter offers a compact and reliable, “gigable” unit to your pedal board. Whether it’s guitar, bass, clavinet, orsynths, the MU-TRON III will help you get the vintage funk out.
“Bleed” By-Pas! – See internal settings to put unit into bleed bypass mode.
This allows the MU-TRON III to act as a clean boost when in bypass mode. This 2 for 1 functionality is a tone secret of one very renown guitar player. The MU-TRON III sits well after clean boost and octave effects and before modulation, delay, and reverb. Overdrive and distortions may work well pre and post MU-TRON III and we encourage players to find the best combination for their taste in music and their style of playing. The MU-TRON III has the same quality, ruggedness, and reliability that makes Mu-Tron the first choice of professional musicians.
Features and Improvements:
- Modular optical design which allows for consistency across units.
- Optical servo of filter built into the pedal.
- Original bi-polar internal voltage insures high headroom and low noise
- “Bleed” or “Active” bypass is available on internal control.
- Envelope control of filter
- LED (light emitting diode) indicators to show operating status of effects.
- Routes signal from right to left to be more pedal board friendly.
- Operates on standard  9v  (negative center tip, 100mA power port)
Controls:
- Frequency controls the range of frequency manipulation.
- Peak controls can be used as resonance or damper control.
- Low pass, Band pass, and High pass modes.
- Up and Down drive
- Envelope and opto-mod can be fined tuned internally.
Specifications:
- 1 1/4″ Input Jack
- 1 1/4″ Output Jack
- 9V-12V DC
- Draws 30 mA
- Weight: 1 lbs
- Dimensions: 4.75″ x 2.5″ x 7.25″
- 1 Year Limited Warranty
- Made in the US
Mu-Tron III Quickstart Guide
